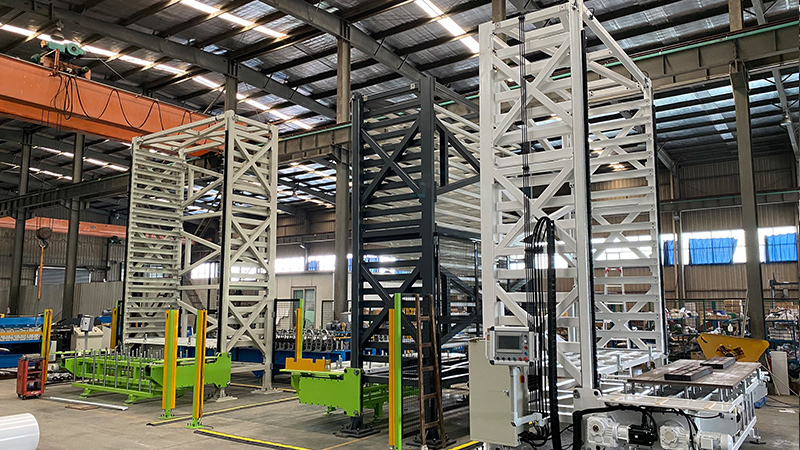

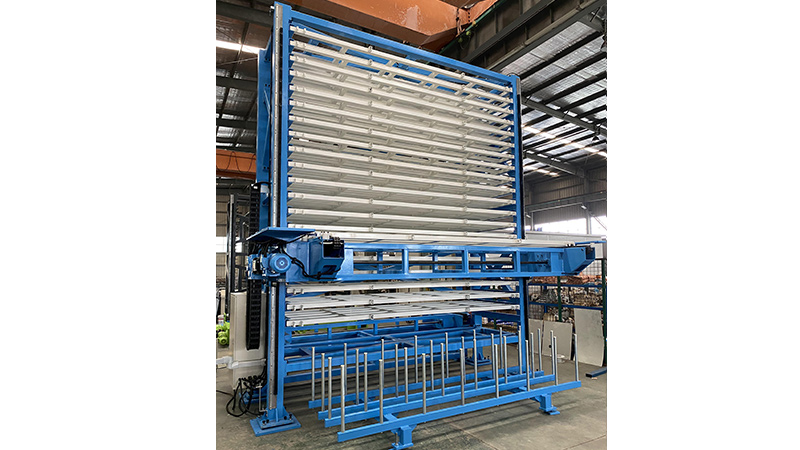

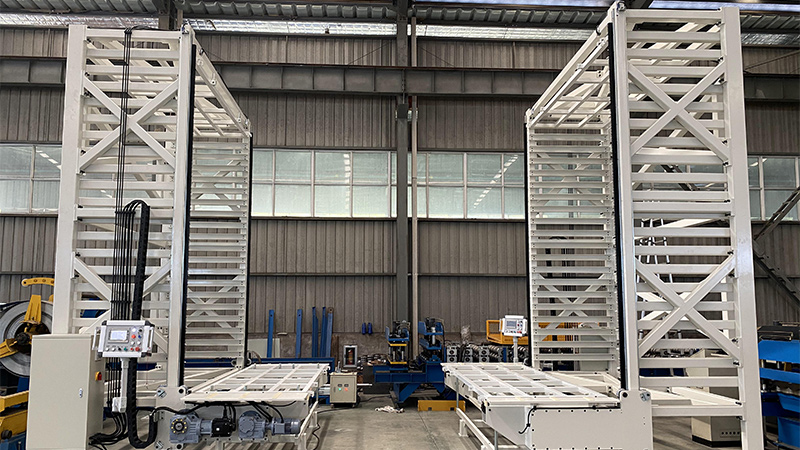

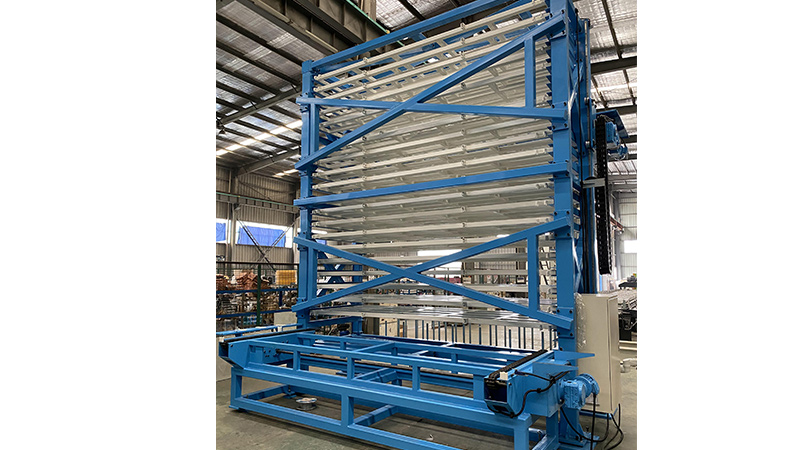

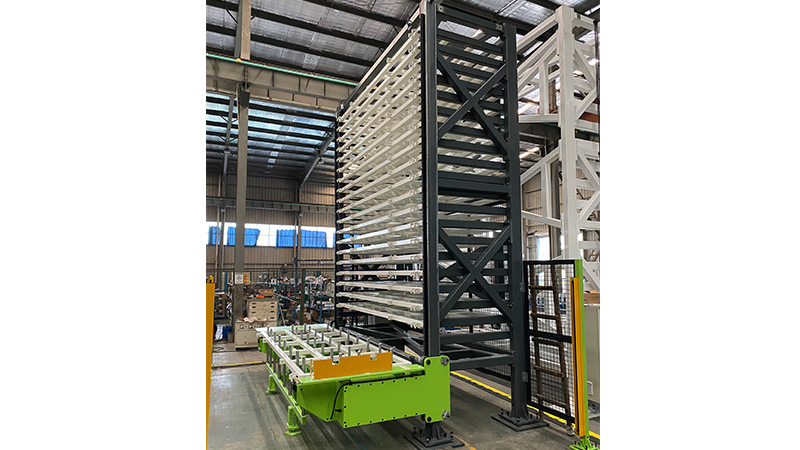

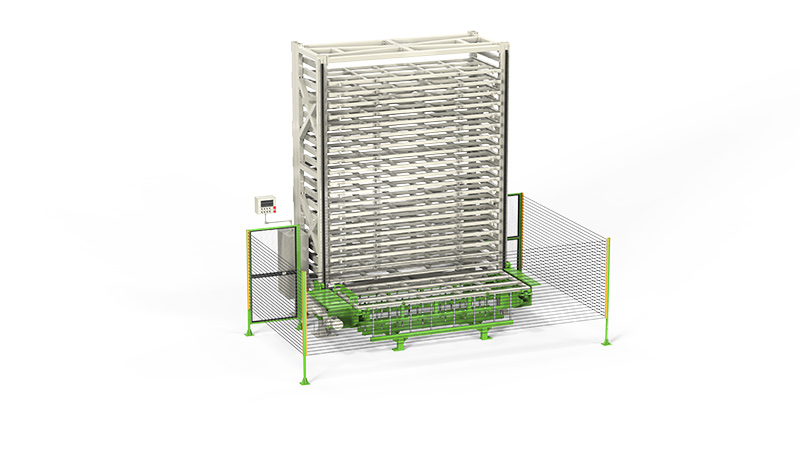

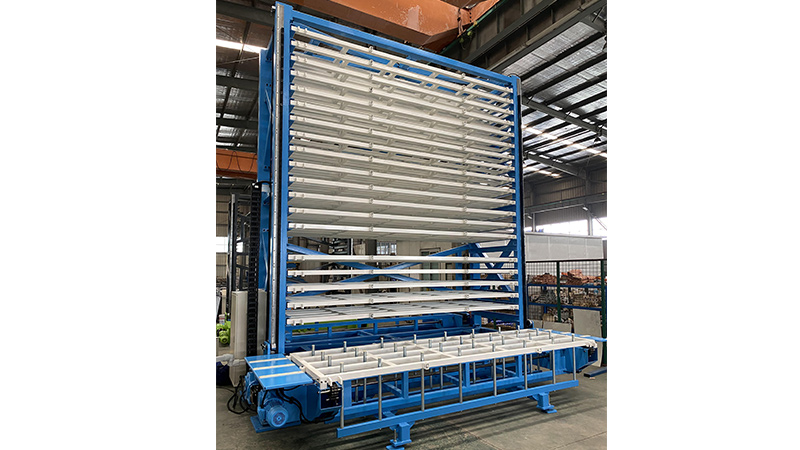

Vertical stacker is a kind of automatic storage plate machine, the machine by the lift tower, the loading tray, lift system, support table, electronic control system, etc. Hangzhou Roll Forming Technology Co., Ltd has ready vertical plate stackers for sale at competitive prices.

Features
Components and Parameters

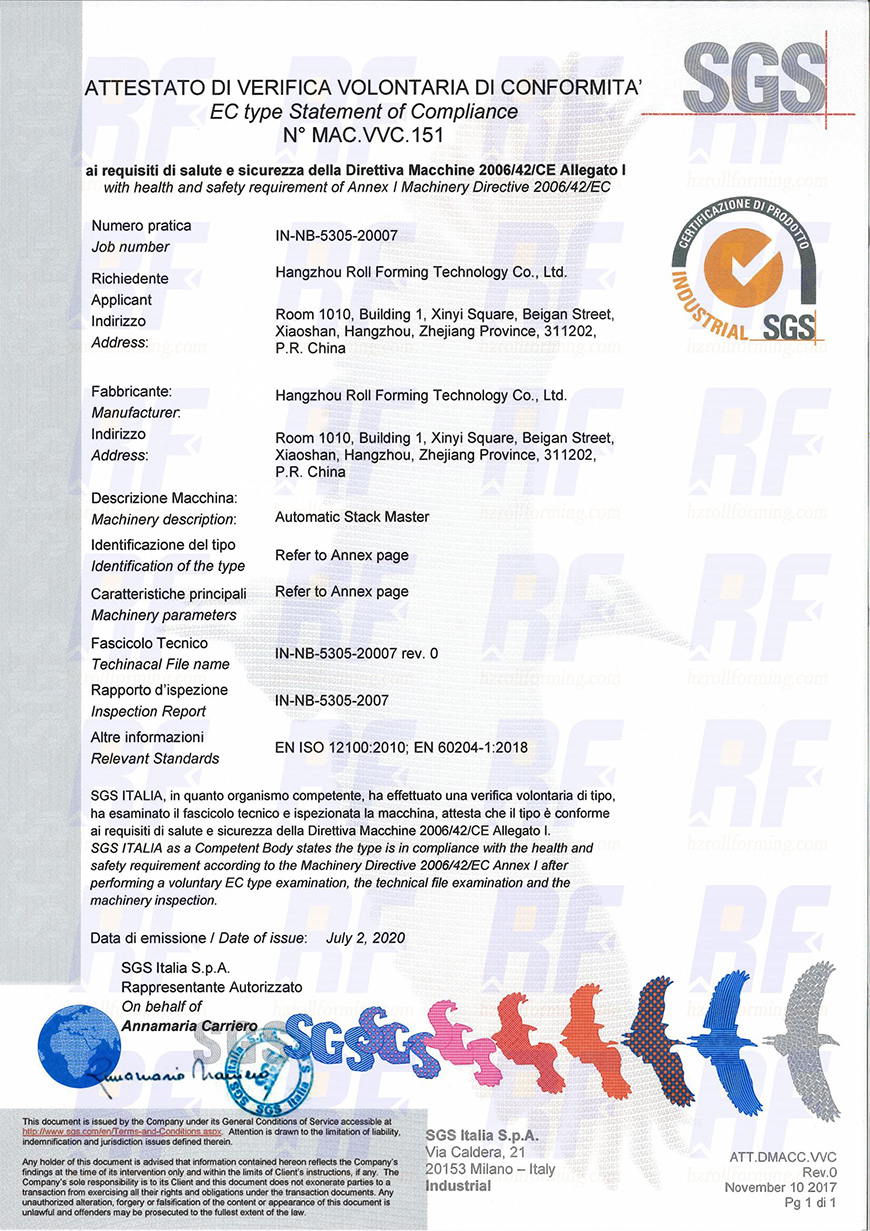

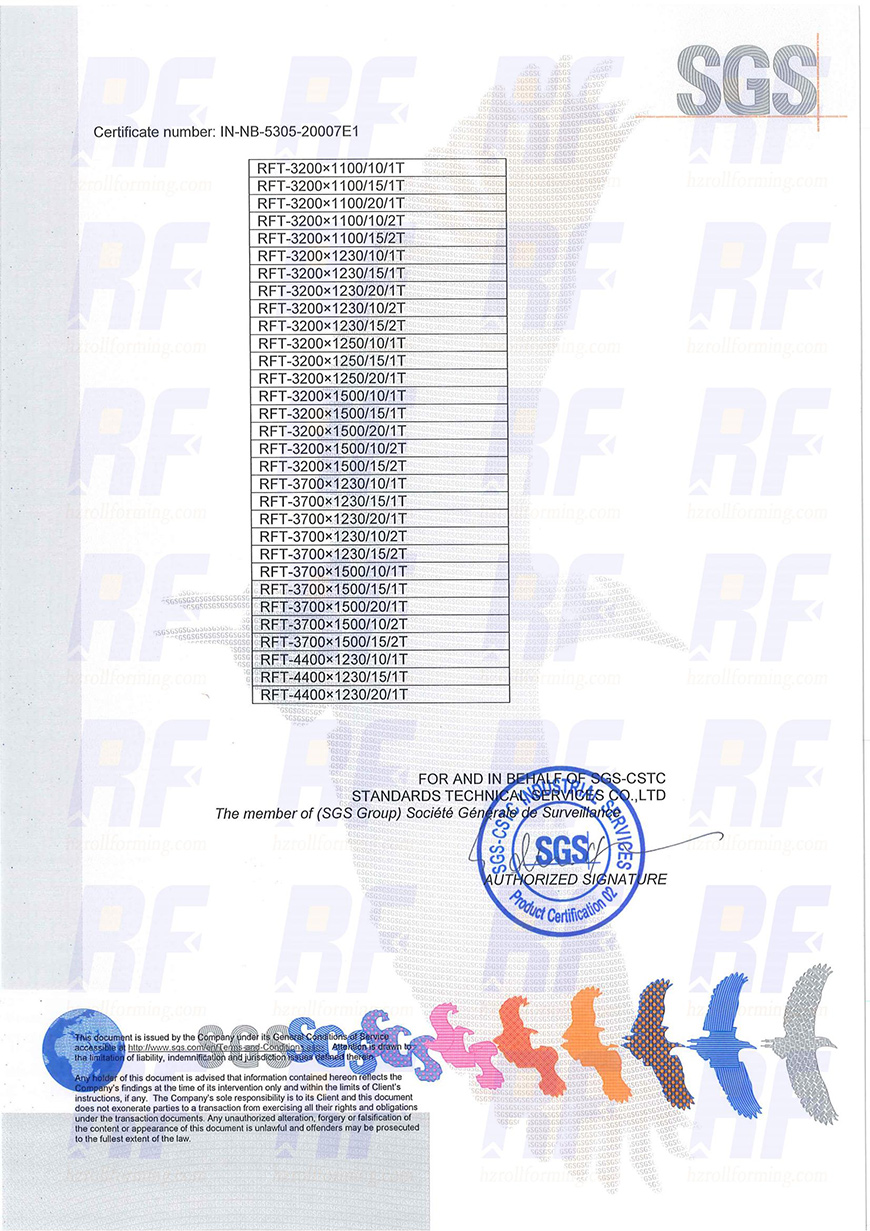

Certificate of Vertical Stacker

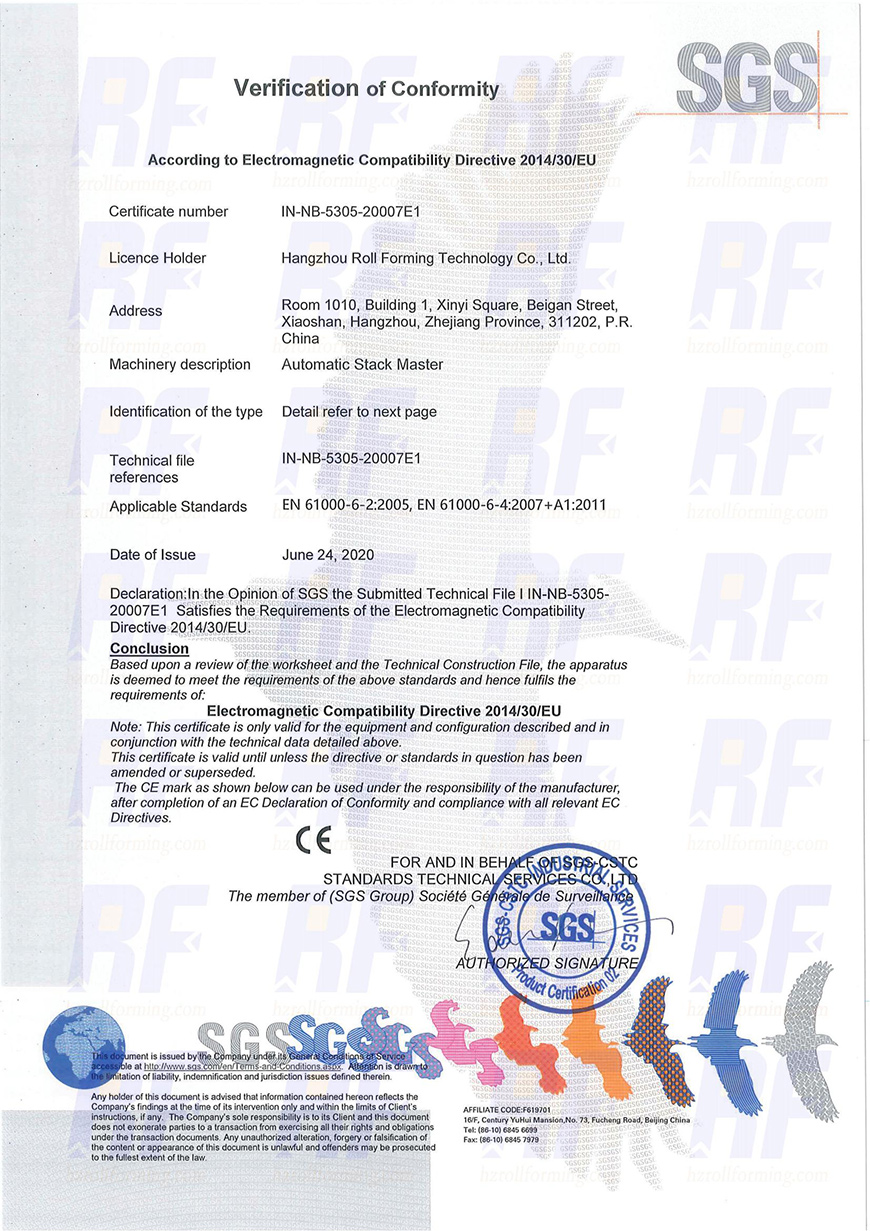

Automatic Vertical Stacker - EMC

Automatic Stack Master EMC



Automatic Stack Master EMC


Automatic Vertical Stacker - MD

Automatic Stack Master MD



Automatic Stack Master MD

Related Information of Vertical Stacker

The chart below shows the basic information of the vertical stackers for sale at Hangzhou Roll Forming Technology Co., Ltd. Feel free to contact us for more detailed information!



Machine ConditionFully New, A-Grade quality
Panel ShapeAs profile drawing and customer's requirements
Operator Needed1 person
Power Supply220V/380V/415V/460V, 50/60Hz, 3P (as requests)
Equipment WeightAbout 9 t
Dimension(L*W*H) about 4.1*6*3.1 m
Loading SizeNormally need 1 x 40' container
Equipment ColorNormally Blue/White, or as requests
Place of OriginZhejiang, China (Mainland)
PackingStandard and careful export packing



Technical Parameter of Vertical Stacker

Series product differences
Machine TypeSuitable SheetsQTY of LayersLoading CapacityServo Motor PowerTraverse Motor PowerTotal PowerFull Load CurrentShort Circuit CurrentMachine WeightRemarks
RFT-3200×1100/10/1T3200*1100mm101000KGS5KW1.5KW6.5KW18A6kA5500KGS1、Suitable Sheets/QTY of Layers/Loading Capacity can be customized.

2、Position of controling system and electric system are optional.They can be placed on the left or on the right.
RFT-3200×1100/15/1T3200*1100mm151000KSG5KW1.5KW6.5KW18A6kA7500KGS
RFT-3200×1100/20/1T3200*1100mm201000KGS5KW1.5KW6.5KW18A6kA9000KGS
RFT-3200×1100/10/2T3200*1100mm102000KGS7.5KW2KW9.5KW25A6kA6500KGS
RFT-3200×1100/15/2T3200*1100mm202000KGS7.5KW2KW9.5KW25A6kA8500KGS

RFT-3200×1230/10/1T3200*1230mm101000KGS5KW1.5KW6.5KW18A6kA5500KGS
RFT-3200×1230/15/1T3200*1230mm151000KGS5KW1.5KW6.5KW18A6kA7500KGS
RFT-3200×1230/20/1T3200*1230mm201000KGS5KW1.5KW6.5KW18A6kA9000KGS
RFT-3200×1230/10/2T3200*1230mm102000KGS7.5KW2KW9.5KW25A6kA6500KGS
RFT-3200×1230/15/2T3200*1230mm152000KGS7.5KW2KW9.5KW25A6kA8500KGS

RFT-3200×1250/10/1T3200*1250mm101000KGS5KW1.5KW6.5KW18A6kA5500KGS
RFT-3200×1250/15/1T3200*1250mm151000KGS5KW1.5KW6.5KW18A6kA7500KGS
RFT-3200×1250/20/1T3200*1250mm201000KGS5KW1.5KW6.5KW18A6kA9000KGS

RFT-3200×1500/10/1T3200*1500mm101000KGS5KW1.5KW6.5KW18A6kA6000KGS
RFT-3200×1500/15/1T3200*1500mm151000KGS5KW1.5KW6.5KW18A6kA8000KGS
RFT-3200×1500/20/1T3200*1500mm201000KGS5KW1.5KW6.5KW18A6kA10000KGS
RFT-3200×1500/10/2T3200*1500mm102000KGS7.5KW2KW9.5KW25A6kA7000KGS
RFT-3200×1500/15/2T3200*1500mm152000KGS7.5KW2KW9.5KW25A6kA9000KGS

RFT-3700×1230/10/1T3700*1230mm101000KGS5KW1.5KW6.5KW18A6kA6000KGS
RFT-3700×1230/15/1T3700*1230mm151000KGS5KW1.5KW6.5KW18A6kA8000KGS
RFT-3700×1230/20/1T3700*1230mm201000KGS5KW1.5KW6.5KW18A6kA10000KGS
RFT-3700×1230/10/2T3700*1230mm102000KGS7.5KW2KW9.5KW25A6kA7000KGS
RFT-3700×1230/15/2T3700*1230mm152000KGS7.5KW2KW9.5KW25A6kA9000KGS

RFT-3700×1500/10/1T3700*1500mm101000KGS5KW1.5KW6.5KW18A6kA7000KGS
RFT-3700×1500/15/1T3700*1500mm151000KGS5KW1.5KW6.5KW18A6kA8500KGS
RFT-3700×1500/20/1T3700*1500mm201000KGS5KW1.5KW6.5KW18A6kA11000KGS
RFT-3700×1500/10/2T3700*1500mm102000KGS7.5KW2KW9.5KW25A6kA8000KGS
RFT-3700×1500/15/2T3700*1500mm152000KGS7.5KW2KW9.5KW25A6kA9500KGS

RFT-4400×1230/10/1T4400*1230mm101000KGS5KW1.5KW6.5KW18A6kA7500KGS
RFT-4400×1230/15/1T4400*1230mm151000KGS5KW1.5KW6.5KW18A6kA9000KGS
RFT-4400×1230/20/1T4400*1230mm201000KGS5KW1.5KW6.5KW18A6kA11500KGS
