a roll forming machine works by continuously feeding a metal strip through a series of rollers that gradually shape it into the desired profile, followed by cutting the formed strip to the required length. The process is efficient, consistent, and versatile, making it suitable for high-volume production of complex metal profiles.
Uncoiler: Holds and unwinds the metal coil.
Feeding Guide: Directs the metal strip into the machine.
Roll Stands: Series of stands that hold pairs of rollers.
Rollers: Tools that shape the metal strip.
Cut-off Press: Cuts the formed metal to the desired length.
Control System: Manages the operation of the machine, including speed, alignment, and cutting.
Loading the Material:
The metal coil is placed on the uncoiler, which unwinds the coil and feeds the metal strip into the machine.
Feeding the Material:
The feeding guide ensures that the metal strip is properly aligned as it enters the roll forming machine.
Forming Process:

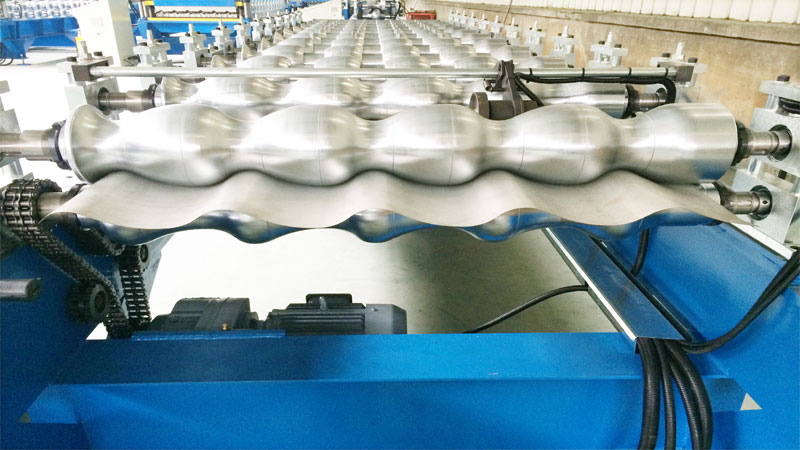

The metal strip passes through a series of roll stands. Each stand contains a pair of rollers that incrementally bend the metal strip.
The rollers are precisely machined to create the desired profile. As the strip moves through each set of rollers, it undergoes gradual deformation until the final shape is achieved.
The number of roll stands and the design of the rollers depend on the complexity of the profile being formed.
Cutting to Length:
Once the metal strip has been formed into the desired profile, it reaches the cut-off press.
The cut-off press cuts the continuous formed strip into individual pieces of the required length. This can be done using a flying cut-off system that moves with the strip to ensure continuous operation without stopping the machine.
Quality Control:
Throughout the process, sensors and control systems monitor the alignment, speed, and quality of the formed metal.
Adjustments can be made in real-time to ensure the final product meets the required specifications.
Cold roll forming technology, also known as cold roll forming or simply roll forming, is a continuous bending operation in which a long strip of sheet metal (typically coiled steel) is passed through sets of rolls mounted on consecutive stands, each set performing only an incremental part of the bend, until the desired cross-section profile is obtained. This process is performed at room temperature, hence the term "cold" roll forming.
High Efficiency and Productivity:
Continuous Process: Unlike other metal forming processes, roll forming is continuous, allowing for high-speed production.
Minimal Waste: The process is highly efficient with minimal material waste, making it cost-effective.
Complex Cross-Sections:
Versatility: Roll forming can produce complex cross-sectional profiles that would be difficult or impossible to achieve with other forming methods.
Consistency: The process ensures high dimensional accuracy and consistency across long production runs.
Material Properties:
Strength: Cold forming can enhance the strength and hardness of the material due to work hardening.
Surface Finish: The process can produce excellent surface finishes, often eliminating the need for additional finishing operations.
Cost-Effectiveness:
Tooling Costs: While initial tooling costs can be high, the long-term cost per unit is low due to the high production rates and minimal waste.
Energy Efficiency: Since the process is performed at room temperature, it requires less energy compared to hot forming processes.
Flexibility:
Material Variety: Roll forming can be used with a wide range of materials, including various grades of steel, aluminum, and other metals.
Customization: The process allows for easy customization of profiles to meet specific design requirements.
